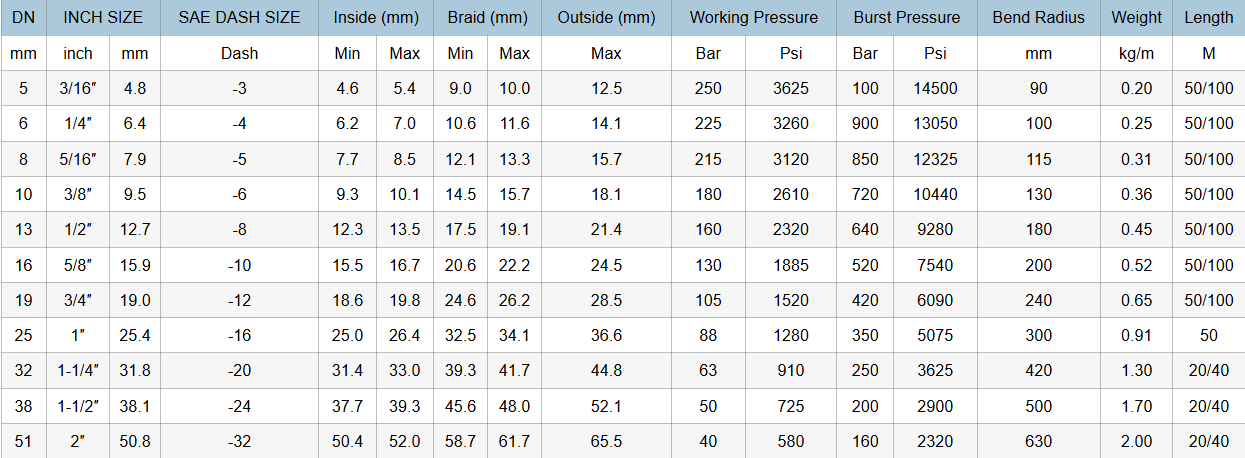

SAE100 R1AT
Tube: Oil resistant synthetic NBR rubber
Reinforcement: One high tensile steel wire braid
Cover: Oil and weather-resistant synthetic CPE rubber, wrapped/smooth cover
Temperature: -40°C to +100°C (-55°C to +100°C, intermittent 120°C)
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more

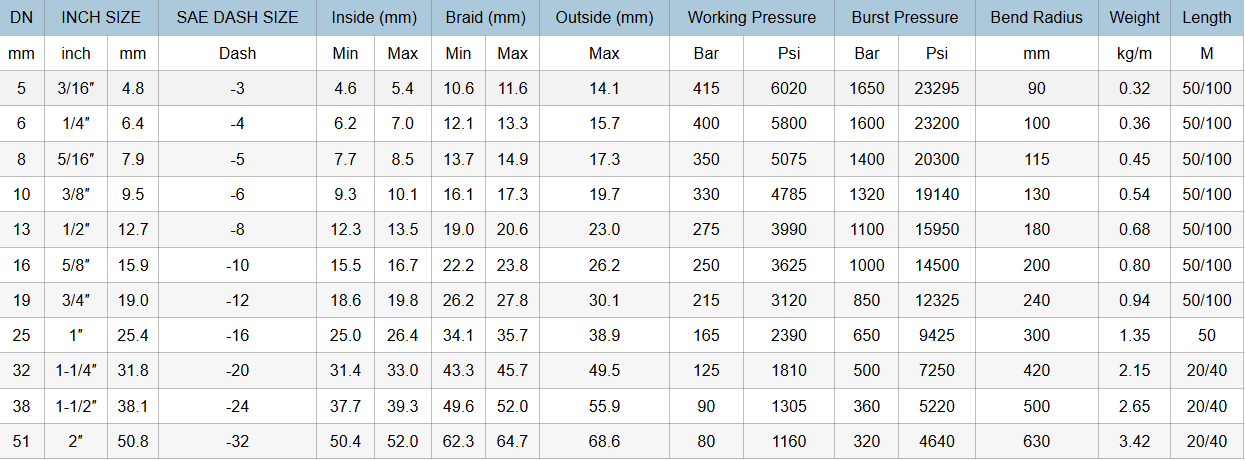

SAE100 R2AT
Tube: Oil resistant synthetic rubber
Reinforcement: Two high tensile steel wire braids
Cover: Oil and weather resistant synthetic rubber, Wrapped/Smooth cover
Temperature: -40°C to +100°C (-55°C to +100°C, intermittent 120°C)
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

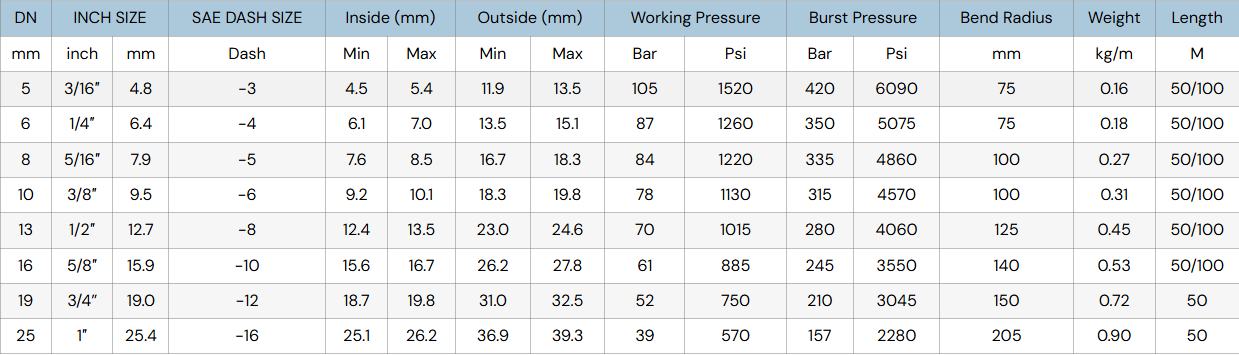

SAE100 R3
Tube: Oil resistant synthetic rubber
Reinforcement: Two layers textile braid
Cover: Oil and weather resistant synthetic rubber, Wrapped/Smooth cover
Temperature: -40°C to +100°C
Application: Petroleum-based hydraulic fluid, gasoline, water, lubricating oils, glycol, mineral oils, and more.

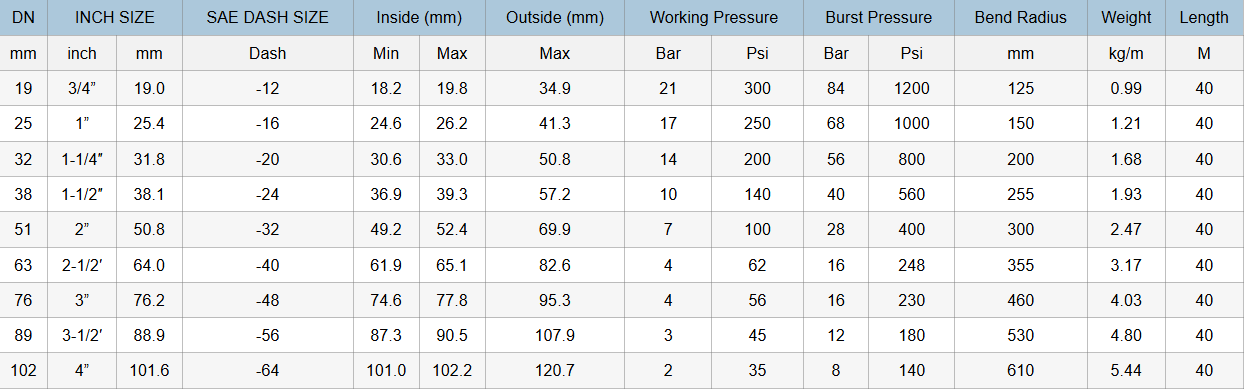

SAE100 R4
Tube: Oil resistant synthetic rubber
Reinforcement: High tensile cords and helix steel wire
Cover: Oil and weather resistant synthetic rubber
Temperature: -40°C to +100°C
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

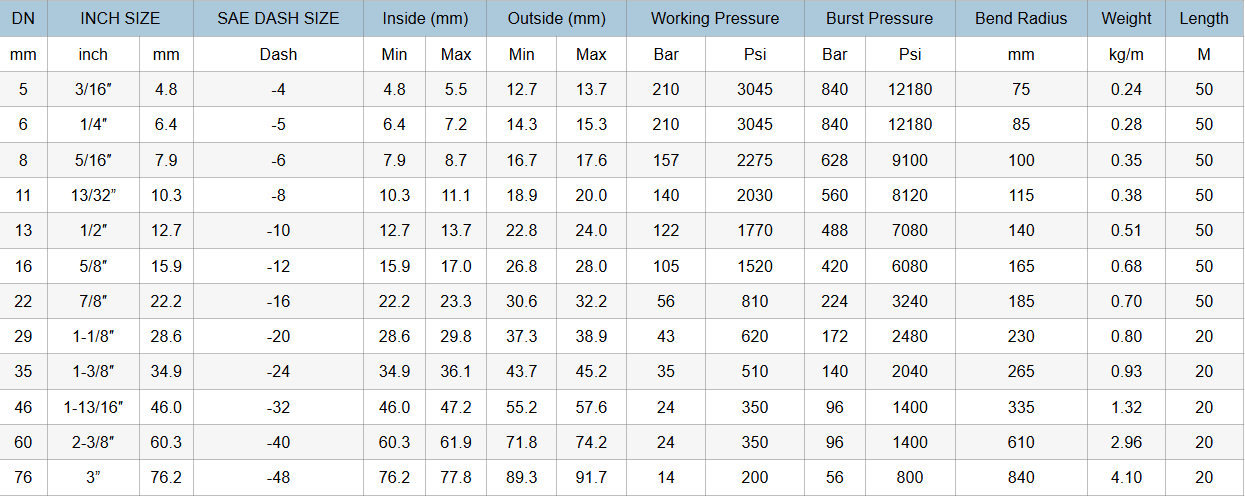

SAE100 R5
Tube: Oil resistant synthetic rubber
Reinforcement: One braid of high tensile steel wire
Cover: Textile braid impregnated with oil resistant synthetic rubber compound
Temperature: -40°C to +100°C
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

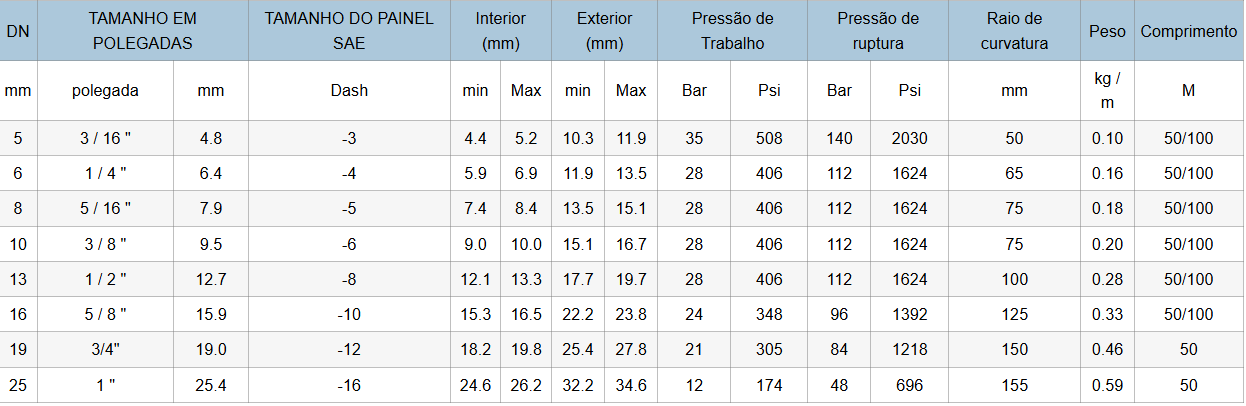

SAE100 R6
Tube: Oil resistant synthetic rubber
Reinforcement: One layer textile braid
Cover: Oil and weather resistant synthetic rubber, Wrapped/Smooth cover
Temperature: -40°C to +100°C
Application: Petroleum-based hydraulic fluid, gasoline, water, lubricating oils, glycol, mineral oils, and more.

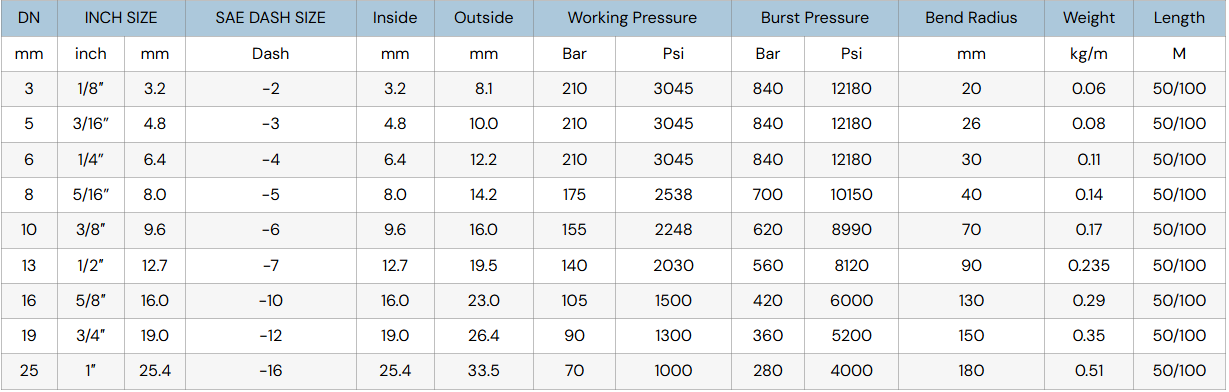

SAE100 R7
Tube: Oil-resistant synthetic thermoplastic core(Nylon)
Reinforcement: One braid of high tensile synthetic fiber
Cover: Abrasion-resistant polyurethane
Temperature: -40°C to +100°C
Application: Automobile,construction machinery,lathe,agriculture,machine, mining, spurting the oil paint, navigation & spaceflight, cooling, and another hydraulic control system.

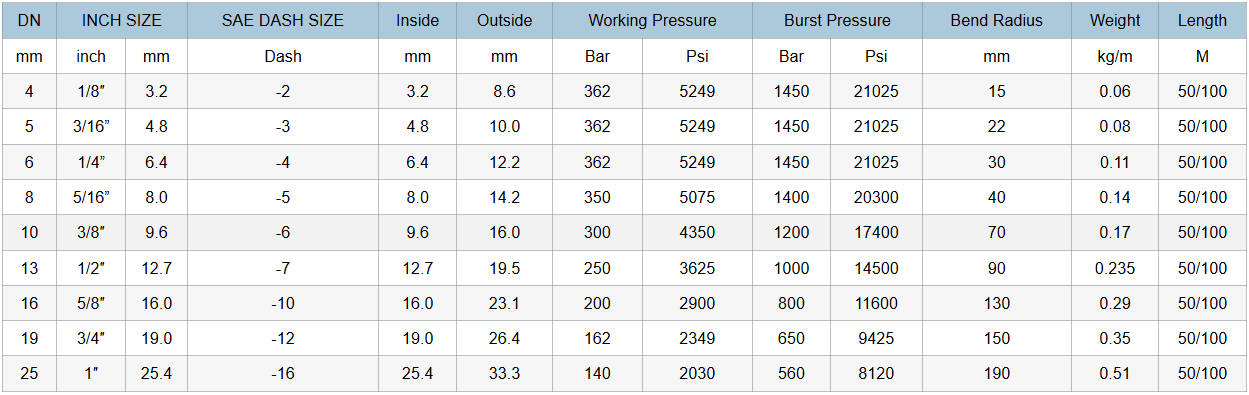

SAE100 R8
Tube: Oil-resistant synthetic thermoplastic core(Nylon)
Reinforcement: Two braids of high tensile synthetic fiber
Cover: Abrasion-resistant polyurethane
Temperature: -40°C to +100°C
Application: Automobile,construction machinery,lathe,agriculture,machine, mining, spurting the oil paint, navigation & spaceflight, cooling, and another hydraulic control system.

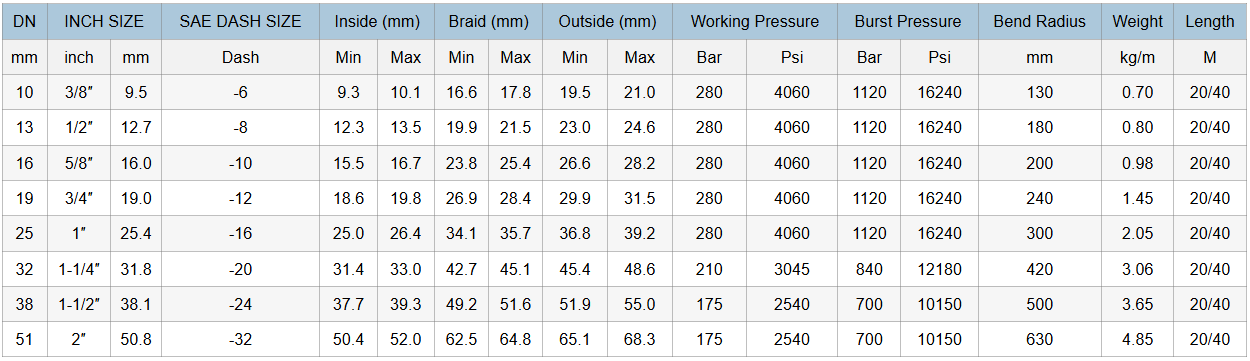

SAE100 R12
Tube: Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire spiral layers
Cover: Abrasion, ozone, and weather resistant synthetic rubber
Temperature: -40°C to +120°C (-55°C to +125°C)
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

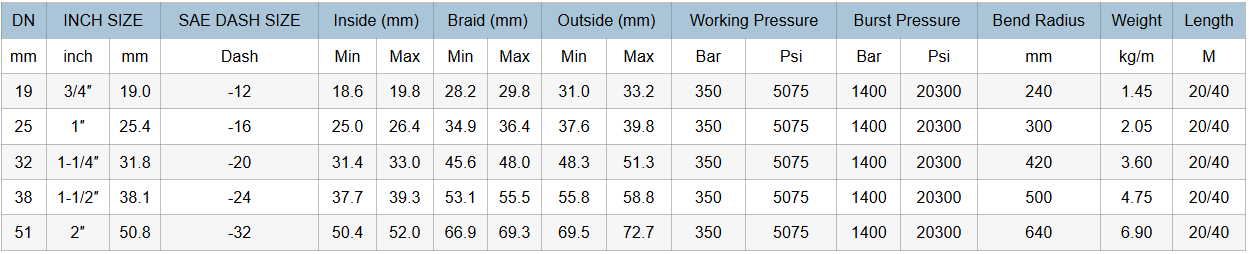

SAE100 R13
Tube: Oil resistant synthetic rubber
Reinforcement: Four or six high tensile steel wire spiral layers
Cover: Abrasion, ozone, and weather resistant synthetic rubber
Temperature: -40°C to +120°C (-55°C to +125°C)
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

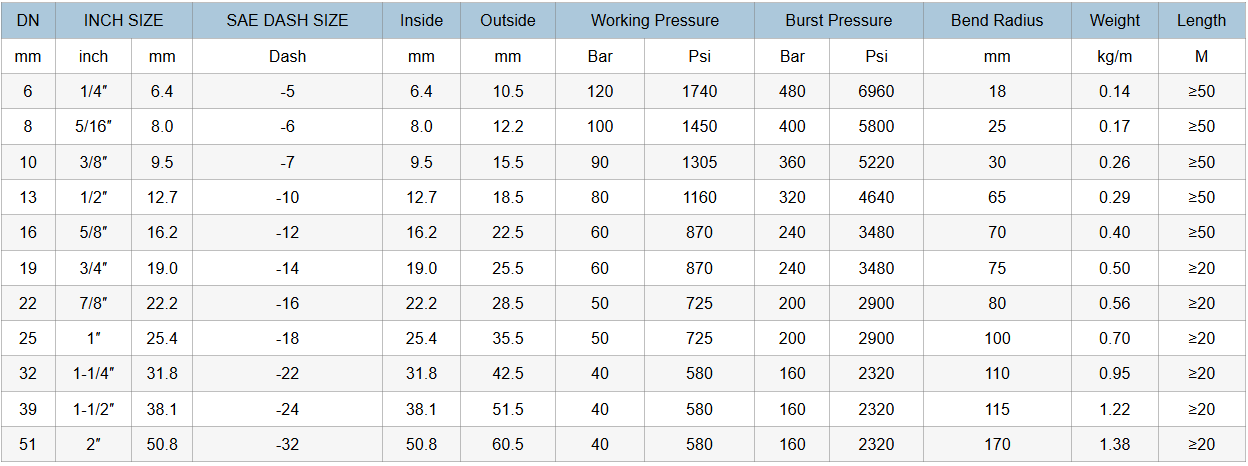

SAE100 R14
Tube: corrugated PTFE hose for high and low temperature used, anti-corrosive, non-stick.
Cover: SUS304 stainless steel braided, higher pressure resistance, all kinds of couplings can be available. SUS316 custom acceptable.
Temperature: constant use -50°C~+210°C, instant use-70°C~+260°C
Application: the hydraulic hose, pneumatic hose and steam hose of the industries of rubber, plastic, clothing, auto, engine bed, shipbuilding, electrical machinery, diesel alternate liquid, gas, and high corrosive medium compare to another hose, also have the longest life.

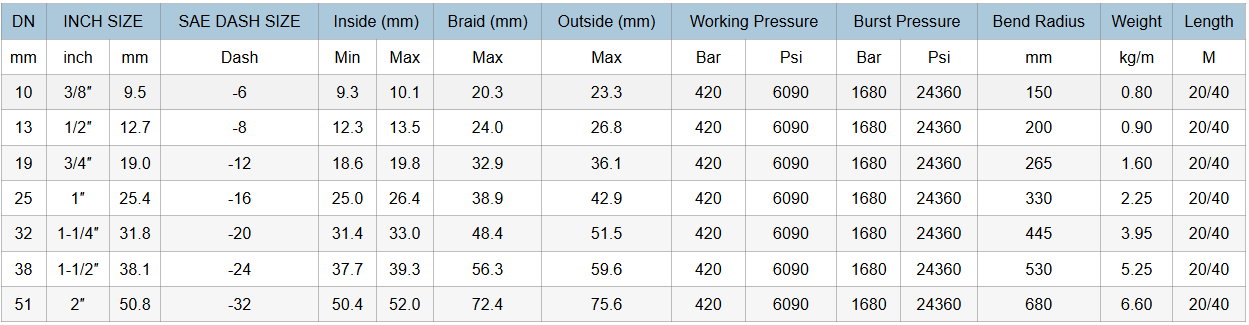

SAE100 R15
Tube: Oil resistant synthetic rubber
Reinforcement: Four or six high tensile steel wire spiral layers
Cover: Abrasion, ozone, and weather resistant synthetic rubber
Temperature: -40°C to +120°C (-55°C to +125°C)
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

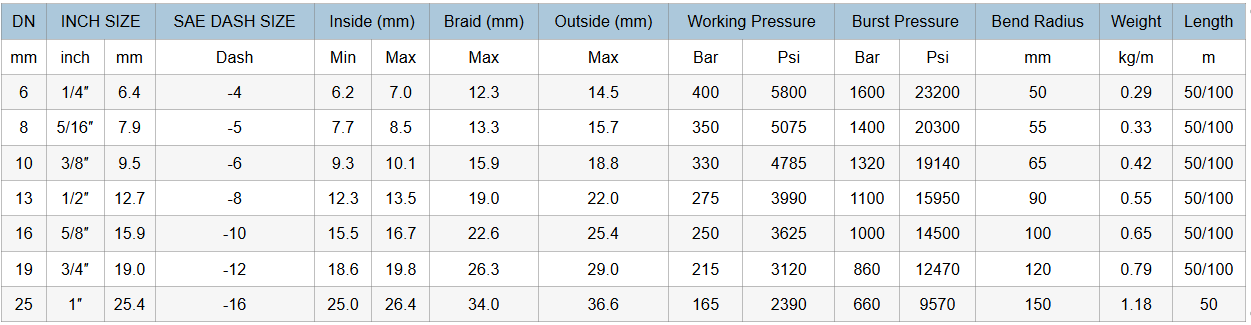

SAE100 R16
Tube: Oil resistant synthetic rubber
Reinforcement: two high tensile steel wire braid
Cover: Oil, abrasion and weather resistant synthetic rubber, Wrapped/Smooth cover
Temperature range: -40°C to +100°C (-55°C to +100°C, intermittent 120°C)
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

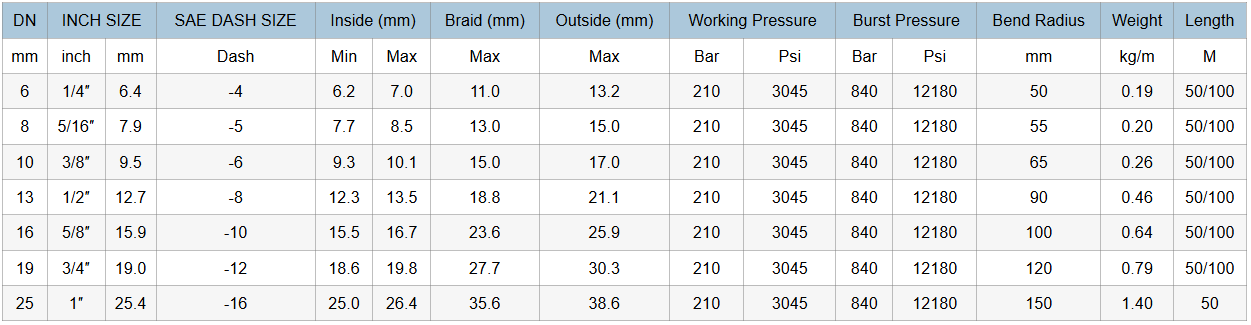

SAE100 R17
Tube: Oil resistant synthetic rubber
Reinforcement: one high tensile steel wire braid
Cover: Oil, abrasion and weather resistant synthetic rubber, Wrapped/Smooth cover
Temperature range: -40°C to +100°C (-55°C to +100°C, intermittent 120°C)
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

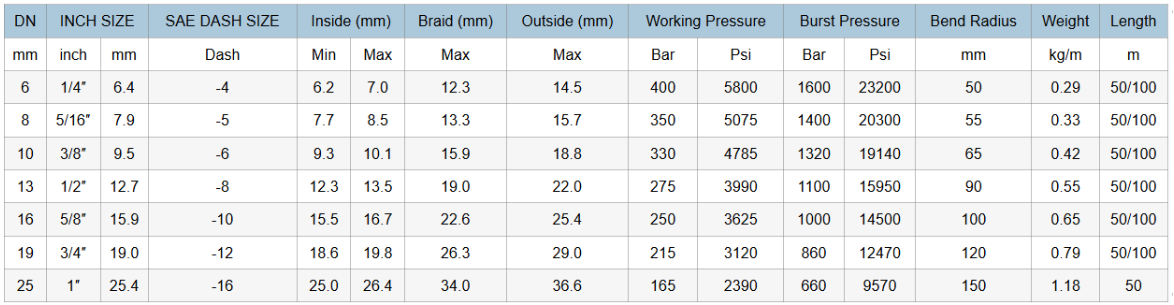

SAE100 R19
Tube: Oil resistant synthetic rubber
Reinforcement: two high tensile steel wire braid
Cover: Oil, abrasion and weather resistant synthetic rubber, Wrapped/Smooth cover
Temperature range: -40°C to +100°C (-55°C to +100°C, intermittent 120°C)
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

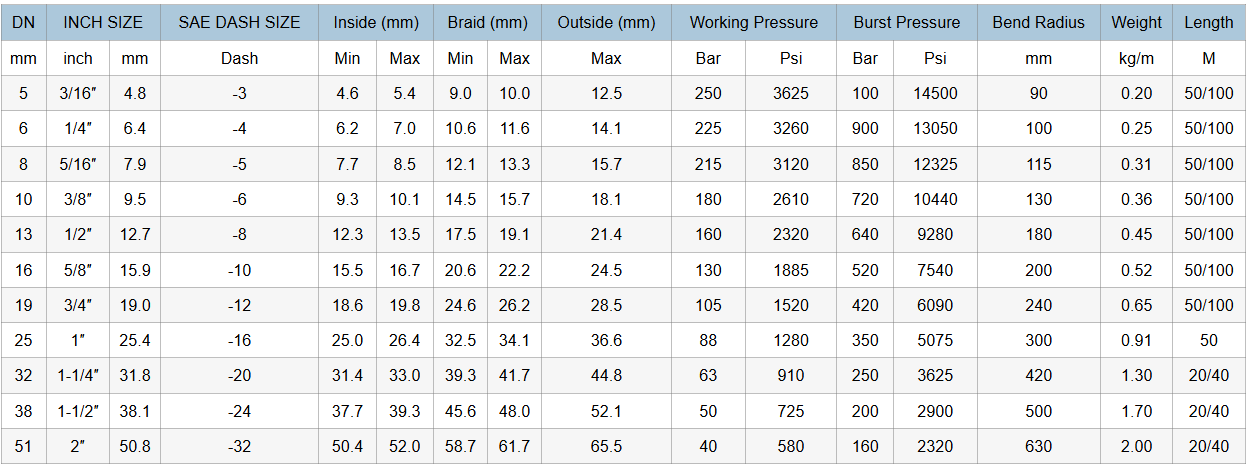

DIN EN 853 1SN
Tube: Oil resistant synthetic NBR rubber
Reinforcement: One high tensile steel wire braid
Cover: Oil and weather-resistant synthetic CPE rubber, wrapped/smooth cover
Temperature: -40°C to +100°C (-55°C to +100°C, intermittent 120°C)
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

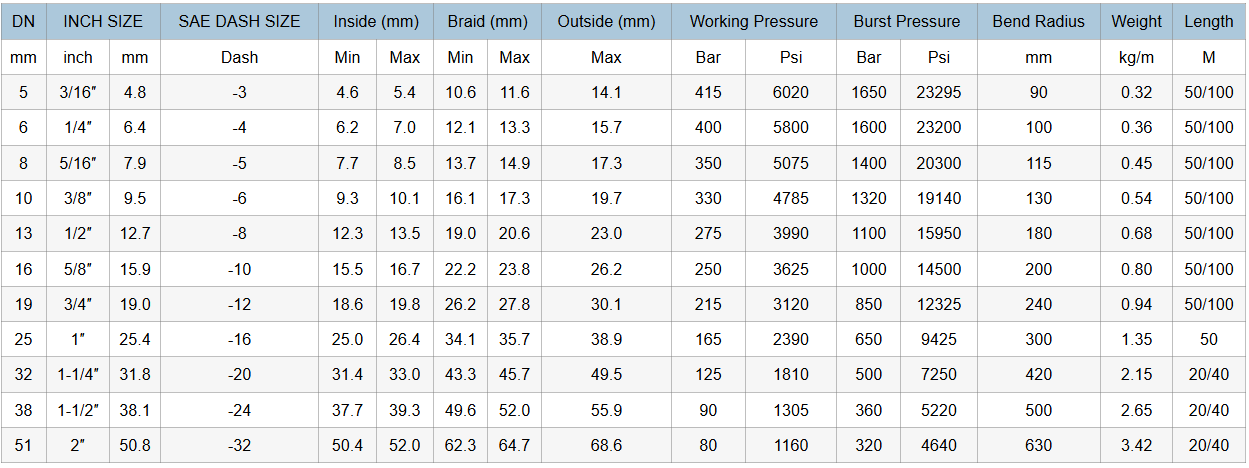

DIN EN 853 2SN
Tube: Oil resistant synthetic rubber
Reinforcement: Two high tensile steel wire braids
Cover: Oil and weather resistant synthetic rubber, Wrapped/Smooth cover
Temperature: -40°C to +100°C (-55°C to +100°C, intermittent 120°C)
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

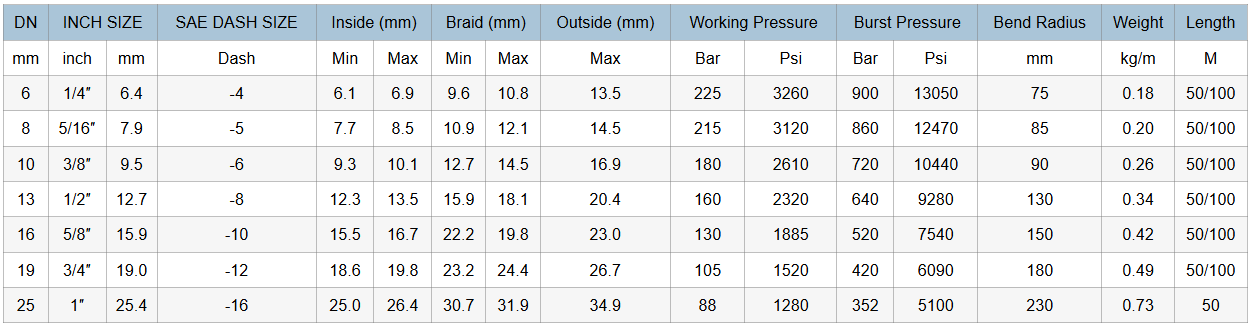

DIN EN 857 1SC
Tube: Oil resistant synthetic rubber
Reinforcement: One high tensile steel wire braids
Cover: Oil and weather resistant synthetic rubber, Wrapped/Smooth cover
Temperature: -40°C to +100°C (-55°C to +100°C, intermittent 120°C)
Application: Be suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.

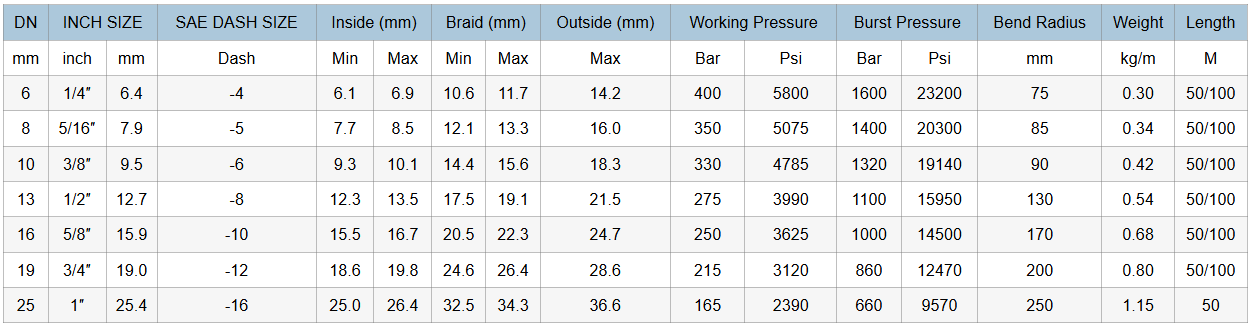

DIN EN 857 2SC
Tube: Oil resistant synthetic rubber
Reinforcement: Two high tensile steel wire braids
Cover: Oil and weather resistant synthetic rubber, Wrapped/Smooth cover
Temperature: -40°C to +100°C (-55°C to +100°C, intermittent 120°C)
Application: Be suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.

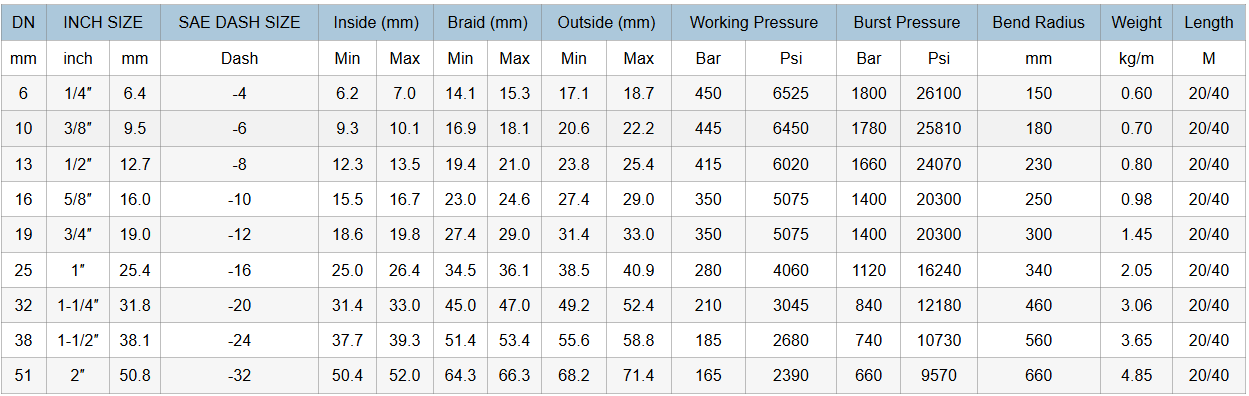

DIN EN 856 4SP
Tube: Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire spiral layers
Cover: Abrasion, ozone, and weather resistant synthetic rubber
Temperature: -40°C to +100°C (-55°C to +100°C, intermittent 120°C)
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

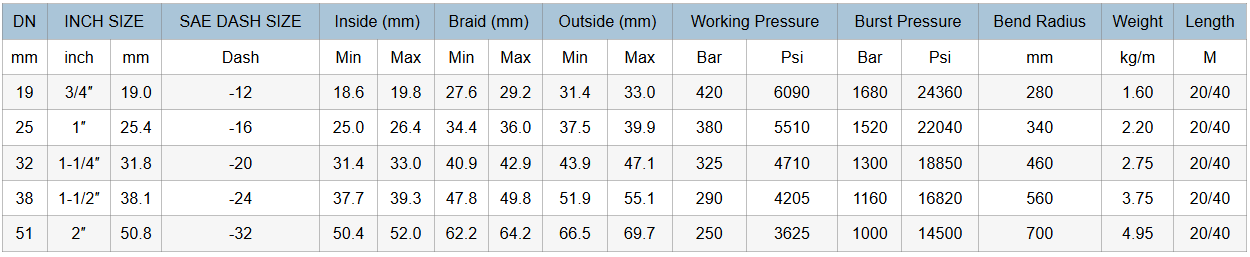

DIN EN 856 4SH
Tube: Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire spiral layers
Cover: Abrasion, ozone, and weather resistant synthetic rubber
Temperature: -40°C to +100°C (-55°C to +100°C, intermittent 120°C)
Application: Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

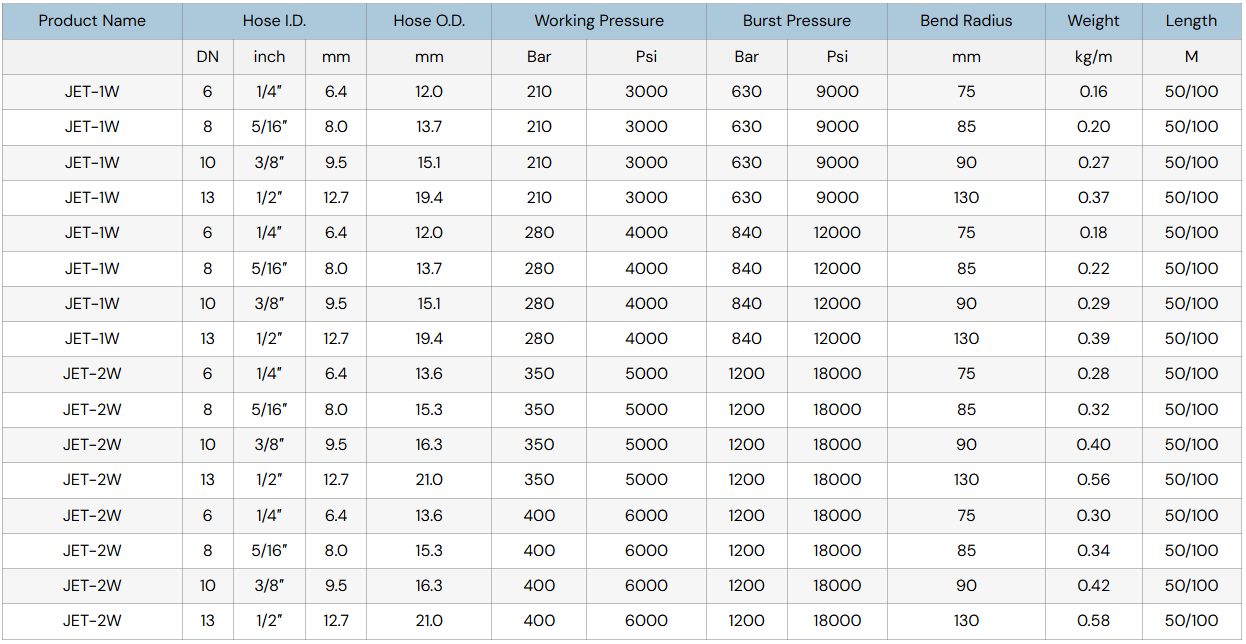

WASH HOSE
Tube: EPDM synthetic rubber
Reinforcement: One or two high tensile steel wire braid
Cover: Abrasion and weather resistant synthetic rubber, black/blue/red/gray, Wrapped/Smooth cover
Temperature range: -40°C to +155°C
Application: For cold and hot water delivery and cleaning
